Kränzle 2160 TS
Kranzle 2160 standard equipment:
- Integrated Roto-Mold trolley, manufactured out of
one piece and therefore extremely stable and sturdy
takes steps and rough ground in its stride - 5 m power lead with cable reel
- Dirtkiller lance with stainless steel pipe
- Adjustable and high pressure nozzle with stainless steel pipe
- Receptacle for spray gun with safety cut-out
- Integrated Roto-Mold trolley, manufactured out of
| Kränzle 2160 TS | |
| Operating pressure, continuously adjustable | 30 – 130 bar, Totalstop |
| Nozzle size | 25045 (Dirtkiller size: 045) |
| Motor Speed | 1400 r.p.m. |
| Max. admissible overpressure | 160 bar |
| Water output | 10.5 l/min |
| Water inlet temperature | Max. 60°C |
| Suction height | 2.5 m |
| Hose Drum | No |
| Total-Stop system | Yes |
| Steel-weave high-pressure hose | 10 m |
| Detergent sucking | yes |
| Connected load | 230 V~, 12.5 A, 50 Hz |
| Power input: | P 1 – 3.2 kW |
| Power output: | P 2 – 2.4 kW |
| Weight | 37 kg |
| Dimensions incl. pulling handle in mm | 375 x 360 x 900 |
| Order No. | 417801 |
Kränzle 2160 TST PRESSURE WASHER
Integrated Roto-Mold trolley, manufactured out of one piece and therefore extremely stable and sturdy takes steps and rough ground in its stride
Integrated hose drum with 15 m steel fabric high-pressure hose
5 m power lead with cable reel
Dirtkiller lance with stainless steel pipe
Adjustable and high pressure nozzle with stainless steel lance
Receptacle for spray gun with safety cut-out
Main advantages of the Kränzle principle of arrangement are the integral hose drum, receptacles for HP gun, Dirtkiller and lance together with the winding-up device for the power cable. Everything is attached to the appliance, easily accessible and it can be used and operated without any problems.
Receptacle for spray gun with lance during breaks.
Operating pressure, continuously adjustable 30 – 130 bar, Totalstop
Nozzle size 25045 (Dirtkiller size: 045)
Motor Speed 1400 r.p.m.
Max. admissible overpressure 160 bar
Water output 10.5 l/min (630l/hr)
Water inlet temperature Max. 60°C
Suction height 2.5 m
Hose Drum Yes
Total-Stop system Yes
Steel-weave high-pressure hose 15 m
Detergent sucking yes
Connected load 230 V~, 12.5 A, 50 Hz
Power input: P 1 – 3.2 kW
Power output: P 2 – 2.4 kW
Weight 39.5 kg
Dimensions incl. pulling handle in mm 375 x 360 x 900
Kranzle 1152 TST
- Integrated trolley
- 5 m power lead
- Cable reel
- Hose drum with 15 m steel-weave high-pressure hose
- Switch-off spray gun with handgrip
- Vario-Jet spray lance with continuously adjustable jet from round to flat jet as well as high and low pressure
- Dirtkiller Lance with stainless steel pipe
- Continuously adjustable pressure and quantity control
- Total stop function
- Brass pump head
- Ceramic-coated pump plungers
- Dry-run safety
- Receptacle for ‘M2000’ gun and lance
- Detergent injector with filter
| Kränzle 1152 TST | |
| Operating pressure, continuously adjustable | 10 – 130 bar |
| Nozzle size | 25045 (Dirtkiller size: 045) |
| Max. Admissible overpressure | 150 bar |
| Water output | at 2800 r.p.m. 10 l/min |
| Inlet water temperature | 60°C |
| Suction height | 1 m |
| Hose drum | yes |
| Steel-weave high-pressure hose | 15 m |
| Dirtkiller | yes |
| Detergent injector | yes |
| Connected load | 230 V~, 50 Hz |
| Intensity of current | 12 A |
| Power input | P 1 – 2.8 kW |
| Power output | P 2 – 2.1 kW |
| Weight incl. accessories | 31.5 kg |
| Dimensions including handle in mm | 360 x 365 x 870 |
| Order No. with Dirtkiller | 41 218 1 |

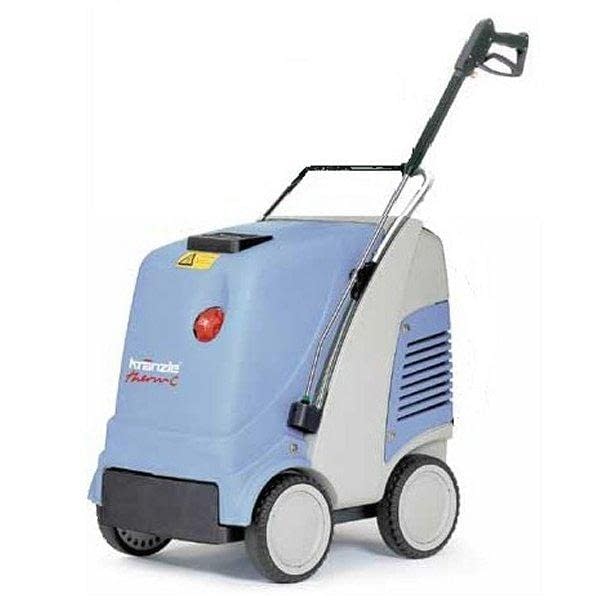

Therm C 11/130
Kränzle therm C standard equipment:
- Integrated trolley
- 7.5 m power lead
- Cable reel
- 10 m steel-weave high-pressure hose; with hose drum 15 m
- Total-Stop facility with delayed motor cut-out
- 4-way safety system with overload protection
- Continuously adjustable temperature control
- Continuously adjustable pressure control from outside the machine
- Integrated steam level
- Pre-aeration of combustion chamber
- 25 l fuel tank with content monitoring
- Brass pump head
- Dry-run safety
- Ceramic-coated pump plungers
- Spray gun with safety cut-out
- Spray lance with stainless steel pipe
- Receptacle for spray gun, lance and Dirtkiller
- Detergent injector with filter
| Technical Data Therm C 11/130 | |
| Operating pressure, fully adjustable | 30 – 130 bar |
| Max. admissible overpressure | 145 bar |
| Water output | 11 l/min (660l/hr) |
| Hot water output temerature (water supply 12ºC) | 12 – 80 °C |
| Steam level | max. 140 °C |
| Nozzle size, flat jet nozzle | 25045 |
| Motor Speed | 1400 r.p.m. |
| Heating oil consumption at max heating output | 5.1 kg/h (6.1 l/h) |
| Heating oil consumption at T 45°C | 3.2 kg/h (3.8 l/h) |
| Heating Output | 55 kW |
| Fuel Tank Capacity Monitoring | 25 l |
| Connect Load | 230V / 50Hz / 15.0A |
| Power Intake | 3.4 kW |
| Output | 2.3 kW |
| Weight | 179 kg |
| Dimensions in mm without hose drum | 790 x 590 x 980 |
| Order No with Hose Drum | 41.442 1 |
| Order No without Hose Drum | 41.442 |
Standard Equipment:
- PTO shaft
- 30ft hydraulic hose
- Quick release coupling
- Chemical injector
- Operating Pressure = 3000 psi
- Delivery Rate = 13L/min @ 540 RPM OR 21L/min @ 1000 RPM
Optional Extras:
- Reel complete with a maximum length of 135ft 3/8″ hose
- Gearbox in a ratio of 2:1
Standard Equipment:
- 8m hydraulic hose
- 700ml high pressure lance
- 6.5 and 13HP Honda engine driven washers
- Diesel Yanmar also available
- 6.5HP come standard with WS 154 Interpump
- 13HP come standard with WS 201 Interpump
Optional Extras:
- Quick release couplings
- Turbo nozzle
